Compuload 5000 Loader Scale

---

 The Compuload CL5000 is a fully electronic modern scale ideally suited for use with Front End Loaders, Skid Steers, Tele Handlers, Container Lifters and Forklifts.

Why do I need an On Board Weighing System?

Increased productivity:

– prevent truck turnarounds at the weighbridge, reducing cycle times.

– Achieve more consistent loading results from the machine operators.

Improved profits:

– Chain of responsibility laws means everyone is now responsible for the safe loading of goods, thus avoiding overloading fines.

– Reduce transportation costs by avoiding overloading and unnecessary trips caused by under loading.

– Eliminate double handling of material loading correctly the first time.

Latest Technology

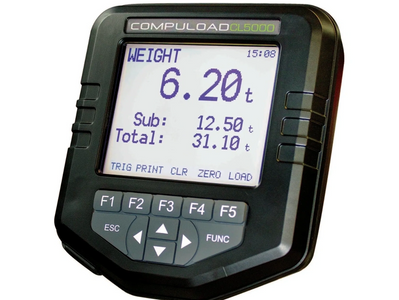

Introducing the lasted in On Board weighing technology. The new Compuload CL5000 series load weighing indicator is designed for a wide variety of On Board weighing applications. This sophisticated and versatile product incorporates the latest in microprocessors to simplify operation and provide accurate results. The 100mm x 80mm extra large dot matrix backlight liquid display provides a clear readable display in all conditions. The large keypad in conjunction with the new easy to follow “on display messages” makes the CL5000 extremely operator friendly.

Proven and Dependable

Compuload weighing systems have proven themselves in all types of applications and environments since 1989 with 1000’s of satisfied users. The modern and careful design of the Compuload CL5000 ensures continuing operation, even in the harshest of environments. Great care has been taken when designing the new Compuload CL5000 to provide high reliability and operation over a wide temperature range.

Intelligent

The new Compuload CL5000 series scale combines precision individual weight readings, sub totals and grand totals. A selection of weighing modes allows the instrument to be configured to suit the characteristics of the machine. Optional printing available.

Service PLUS

Compuload pre sale and after sales support since our inception in 1989, makes us a leading provider in On Board Weighing solutions to industry. Great after sales service is as close as a telephone call away.

Printer Options

The Compuload CL4070 compact printer is an accessory for the Compuload CL5000. It is connected to the CL5000 via the RS232 communications port. It will deliver instant, time and date stamped hard copies of all weighing information, including your Company name, Date and Time on the first three lines, and then showing individual buckets and running accumulative sub totals and grand total.

SPECIFICATIONS

Display:                  100mm x 80mm, Graphic LCD 160 x 128 pixels, High Contrast

Character Size:    Up to 20mm high digits for main weight display

Illumination:          Programmable LED Backlights for  Display and Keyboard

Keyboard:             Tactile feel backlit silicon, with 11 keys and 3 user programmable keys

Power Supply:      12 to 24 volts DC

Supply Current:    180mA @ 12v, 90mA @ 24V Typical

Memory:                Inbuilt non volatile memory, retains configuration and calibration data without power

Temp Range:       -10ºC to + 50ºC

Input:                      0.3 to 40m V/V Pressure Transducer

Connectivity:         RS232, CAN Bus, USB Host Port

Accuracy:              ± 1% Typical

Mounting:              Adjustable Ram bracket

Dimensions:         161mm Wide x 179mm high x 50mm deep

Enclosure:             ABS Plastic with “O” Ring seal

Weight:                  1.2kg

Options:                 Compuload CL4070  Printer

Why Choose Compuload:

• Manufactured under ISO9001

• Reputation for easy to use but accurate weighing with reliability

• Excellent pre sales and after sales service
