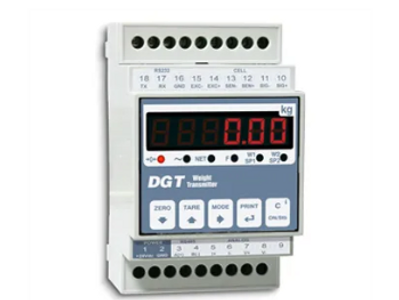

DGT1 Indicator

---

Compact, multifunction weight transmitter indicator, for panel mounting on DIN bar. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.

• Easy to use 5-key waterproof keyboard.
• Highly efficient red LED display with 6 8-mm digits and 6 LEDs for showing active functions.
• Standard dimensions for mounting on DIN bar.
• Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
• Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
• Up to 8 signal linearization points with DINITOOLS (3 from keypad).
• 1 channel A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
• Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
• From 12 Vdc to 24 Vdc power supply.
• Fitted with real time clock and Alibi memory.
