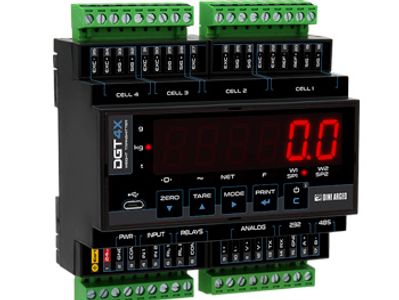

DGT4X Indicator

---

Weight transmitter for weight transfer to PLC via fieldbus, analogue output or RS485.

It allows the reading and diagnostics of each load cell or each connected scale.

Power supply: 12-24Vdc

Converter: A/D 24 bit with 4 channel

Max scale number: 4

Load cells connection: 4 or 6 wires (with sense)

Operating modes:

• Digital junction box
• Multi-scale transmitter
• Single-scale transmitter

Selectable sampling rate: up to 2600 conv./sec

Fieldbus update rate: up to 120 Hz

Displaying: up to 800.000d

Signal sensitivity: 0,03 µV/d (0,3 µV/e)

Resolution: 3.000.000 counts

Linearization: up to 8 points

Connectable load cells: up to 16 350 Ω cells

Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.

Serial ports:

• 1 Micro-USB port (device) for PC configuration with "Dinitools®" and "XSpeed Tool".
• 1 RS485 port
• 1 RS232 port (Mod. DGT4X / DGT4XAN)

Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.

Digital outputs: n. 2 configurable OUTPUTS

Digital inputs: n. 2 configurable INPUTS

Certifications:

• CE-M EN 45501
• OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
• UL Listed (upon request)
• EU Type Examination Certificate (45501:2015)
• Australian legal for trade certificate of approval (NMI S788)

Case: ABS, for Din bar (106 x 56 x 118 mm)

Calibration:

•  Theoretical (mV\V)
• With sample weights
• Remotely by WEB SERVER
• From the keyboard
• From PC with "Dinitools"

Keyboard functions:
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by

Program functions:
Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion, Unbalancing alarm, Broken load cell exclusion

Keyboard: mechanical with 5 keys

Display: 14,2mm red LED
